Insider TA: P&F Navigation Controls

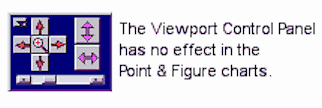

Since Point & Figure charting is not plotted along the same horizontal axis as Insider TA's other graphs, the Viewport Control Panel (the buttons that allow you to scroll and zoom the box chart) does not apply.

Background

Insider TA will always try to scale your P&F charts so that all the data fits entirely within the viewport. If there are many columns to display, you will observe the plotted X's and O's will be downsized accordingly. If the X's and O's get too small, the chart will be difficult to view.

There are two ways to enhance the focus of your Point & Figure charts:

1. Move the P&F reference point
2. Use the P&F magnifying window

...or you can use both methods simultaneously.

P&F Reference Point

By default, Insider TA begins plotting your Point & Figure charts on the very first day. But you can change this reference point to any other day in your historical data.

Observe in the Box Chart a vertical dashed green line with a tiny green square at the top. This is the Point & Figure reference handle. As shown in the following illustration (steps 2 & 3), you can use your mouse to drag this reference handle left or right. Upon releasing the mouse button, the Point & Figure chart will be regenerated to reflect your new reference point.

 Furthermore, you can instantly "snap" the reference point to a clicked location by using your keyboard's Control button. This is explained in step 4 below...

P&F Magnifying window

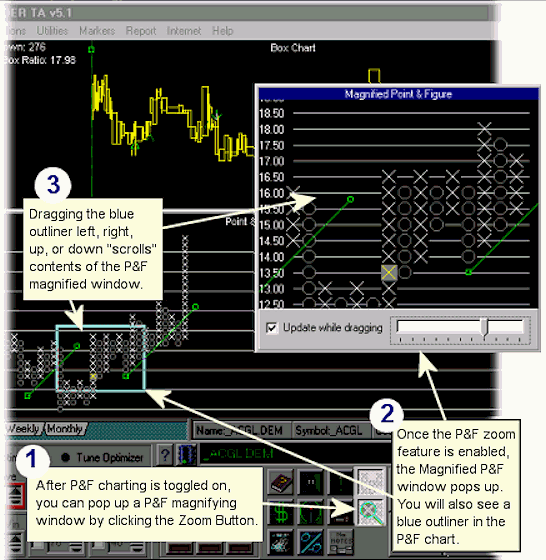

Insider TA incorporates an independent pop-up window dedicated to "scrolling" your P&F charts. We refer to it as the Magnified Point & Figure window. Steps 1 through 3 below illustrate how to use it:


The Magnified Point & Figure window has the following features:

• Enable the "Update while dragging" checkbox, and the contents of the window will refresh in "real-time" as you drag the blue outliner. For slower computers, unchecking this box will postpone refreshing the window until after the blue outliner has been "dropped" at it's new location.
• The slider control governs the magnification level. You will observe the blue outliner changes size as you work with this control.
• Grab any corner or side of the Magnified Point & Figure window to alter it's shape. You will observe the blue outliner changes shape as this action is performed.
